Conversion efficiency
Our industry-leading module power contributes to a conversion efficiency of 22.7%.
-
610W-635W
Maximum Power Output
-
22.7%
Maximum Module Efficiency
-
15years
Product warranty
-
30years
Linear power warranty
Key Features
Double sided power generation
Bifacial ratio reaches 80%, 30% more power generation than conventional modules.
Excellent product appearance and performance
Two-sided double-glazed modules, symmetrical structural design, low risk of hidden cracks.
Better low irradiance performance
Higher power output even under low irradiance environments like on cloudy or foggy days
High reliability
3-fold IEC new standard tests passed, 15-year material warranty, and 30-year power warranty.
Application scenes
Ideal for centralized projects.
Mechanical Parameters
|
Cell Type
|
N Type
|
|
Module Size
|
2465×1134×35mm |
|
Glass Thickness
|
2.0mm |
|
Module Weight
|
35.0Kg |
|
Output Cable
|
4mm², cable length 300mm (can be customized)
|
|
Connector
|
MC4 comparable |
|
Junction Box
|
IP68, 3 bypass diodes
|
|
Frame
|
Anodized aluminium alloy
|

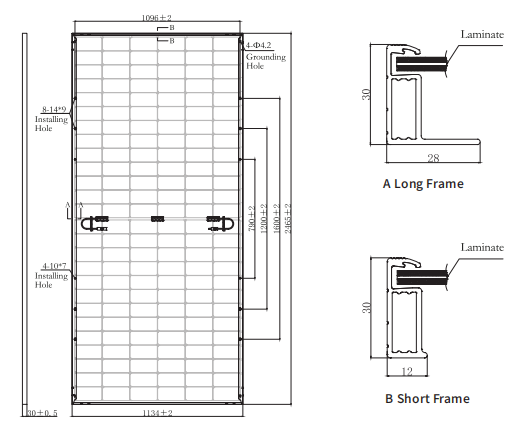

Engineering Drawing (MM )
Operating Parameters
|
Max. System Voltage
|
DC1500W |
|
Power Tolerance
|
0~+5W |
|
Operating Temperatue
|
-40℃~+85℃ |
|
Max. Fuse Rated Current
|
30A |
|
Front Static Load
|
Snow load 5400Pa, Wind load 2400Pa
|
|
Packing Data
|
31 pcs/Pallet；124(20GP)；496(40HQ)
|
