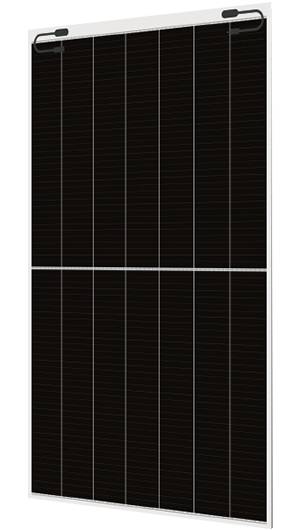

Lightweight High Density Module

Lighter, 4 mm in thickness and 4 KG/m2 in weigh

softer, fitting the curved surfaces better; thinner, releasing the energy of light

Download Datasheets

The product data was updated in 2022.

  • 420W

    Maximum Power Output

  • 20.3%

    Maximum Module Efficiency

  • 10years

    Product warranty

  • 25years

    Linear power warranty

Key Features

Lightweight

Optimized composite materials, 60% lighter at the same power

Flexible

Flexional encapsulating and patent materials

Excellent Appearance and Performance

Esthetics module design, no flare effect, low risk of micro crack

Easy transportation and installation

Original design making it far less costly for transportation and installation

Customization

Customization for various senarios, high additional value

Superior Low Irradiance Performance

Excellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days

Mechanical Parameters

Cell Type P Type
Module Size 1985×1165×4mm
Module Thickness 4mm
Module Weight 9.9Kg
Output Cable 4mm², cable length 300mm (can be customized)
Connector MC4 compatible
Junction Box IP68, 2 bypass diodes
Back Color Black / White

Engineering Drawing (MM )

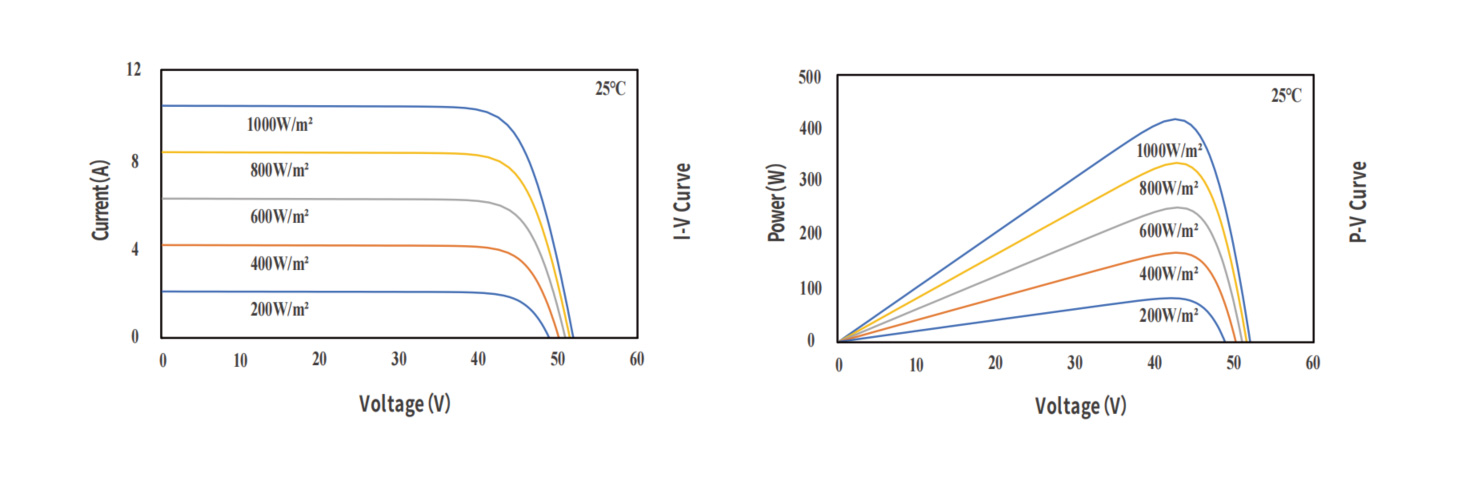

Characteristic Curves(420W)



Operating Parameters

Max. System Voltage DC1500W
Power Tolerance 0~+5W
Operating Temperatue -40℃~+85℃
Max. Fuse Rated Current 20A
Front Static Load Snow load 2400Pa, Wind load 2400Pa

Packing Data

Packing Type 20'GP 40'HQ
Piece/Pallet 60 60
Pallet/Container 8 18
Piece/Container 480 1080
