Lightweight
Optimized composite materials, 60% lighter at the same power
The product data was updated in July, 2023.
-
430W
Maximum Power Output
-
20.8%
Maximum Module Efficiency
-
10years
Product warranty
-
25years
Linear power warranty
Key Features
Flexible
Flexional encapsulating and patent materials
Excellent Appearance and Performance
Esthetics module design, no flare effect, low risk of micro crack
Easy transportation and installation
Original design making it far less costly for transportation and installation
Customization
Customization for various senarios, high additional value
Superior Low Irradiance Performance
Excellent low irradiance performance, increase power generation in low-light conditions like mornings, evenings and cloudy days
Mechanical Parameters
|
Cell Type
|
P Type
|
|
Module Size
|
1985×1165×4mm |
|
Module Thickness
|
4mm |
|
Module Weight
|
9.9Kg |
|
Output Cable
|
4mm², cable length 300mm (can be customized)
|
|
Connector
|
MC4 comparable
|
|
Junction Box
|
IP68, 2 bypass diodes
|
|
Back Color
|
Black / White
|

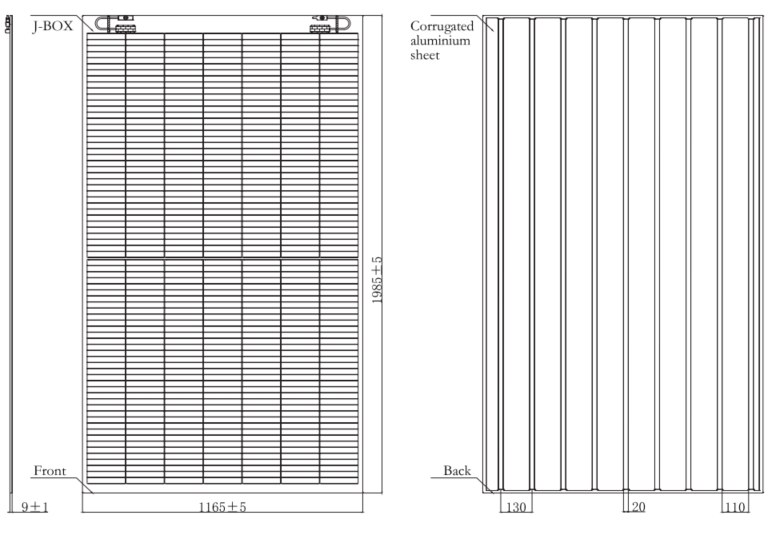

Engineering Drawing (MM )
Characteristic Curves(420W)
Operating Parameters
|
Max. System Voltage
|
DC1500W |
|
Power Tolerance
|
0~+5W |
|
Operating Temperatue
|
-40℃~+85℃ |
|
Max. Fuse Rated Current
|
20A |
|
Front Static Load
|
Snow load 2400Pa, Wind load 2400Pa
|
Packing Data
|
Packing Type
|
20'GP
|
40'HQ
|
|
Piece/Pallet
|
60 | 60 |
|
Pallet/Container
|
8 | 18 |
|
Piece/Container
|
480 | 1080 |
